Industrial USB HART Modem

£200.00

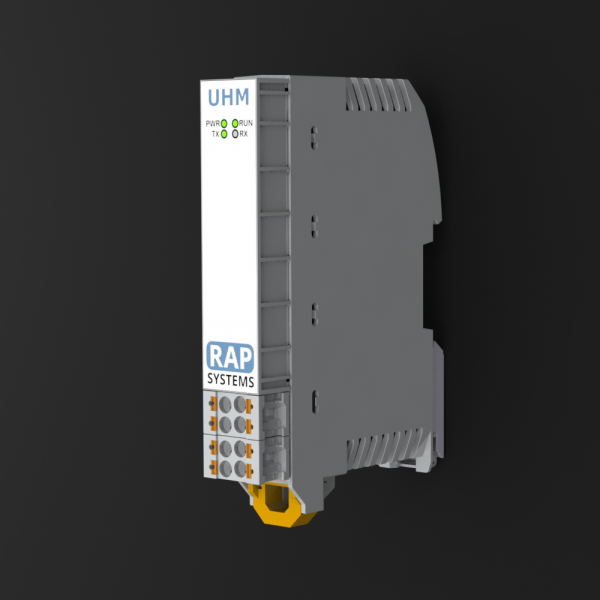

The RMC-UHM is a single channel USB HART Modem module designed for industrial applications.

SKU: RMC-UHM Category:

Description

The RMC-UHM is a single channel USB HART Modem module designed for industrial applications. The modules are intended to be used in conjunction with a PC or laptop computer running standard or proprietary software such as PACTware, FieldCare, FieldMate and other device management software to configure, maintain and manage HART capable process instruments. Communication between the PC and the module is via USB 2.0/1.0 interface.

Software drivers provided with the product create virtual serial COM ports on the PC which are identical in behaviour to actual serial ports and may be used as such by software package. The USB connection is convenient for portable engineering tools such as note and net books which often do not provide a serial interface. The modules can act as secondary or primary masters and have an inbuilt current sense loop resistor is user selectable.

Drivers are available for a wide range of operating systems including Windows Server 2008 R2, Windows 7, Windows 7 x64, Windows Server 2008, Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003, Windows Server 2003 x64, Windows XP, Windows XP x64, Windows ME, Windows 98, Linux, Mac OS X, Mac OS 9, Mac OS 8, Windows CE.NET (Version 4.2 and greater), and Android.

The RMC-UHM module is supplied in DIN rail mountable enclosures.


Datasheet
